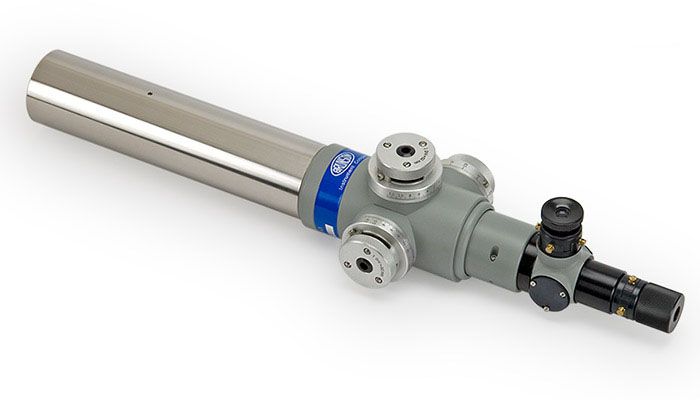

2030 Alignment Telescope Bright Line / Bright Field English

SKU
2030
Overview
Ships in 4 Weeks

Bright line & bright field reticles, English units

The 2030 is essentially the same as the 2022 alignment telescope but has a right angle eyepiece and a two-reticle system consisting of a dark field, bright line reticle as well as a bright field, dark line reticle. These features specifically enhance the unit's accuracy and ease of use when autocollimating. The 2030 includes a built-in autoreflection target on the objective lens. An autocollimation illumination unit (our model 509) is included with the instrument.

See also similar instrument 2024BL (with micrometers graduated in metric units) and read more about our alignment telescopes.

The 2030 is classified as National Stock number (NSN) 6650-P71-2030.

May Be Used With

187-S Coincidence Striding Level
2230 Right Angle Eyepiece (discontinued)

3205 Cross Level

508 Light Source (discontinued)

3220 Coincidence Striding Level (discontinued)

6202 Magnetic Back Mirror, 2½"

6204 Magnetic Back Mirror, 4"

Any of our alignment telescope bases


Specifications
Effective aperture 42 mm
Field of View 37 minutes at infinity, 42 mm at zero focus
Focusing Range Zero to infinity
Magnification Varies from 4x at zero focus to 46x at infinity
Optics Fully coated
Reticle All-purpose, double glass, dustproof; cross-pattern with single lines top and right, paired lines bottom and left
