2024BL Alignment Telescope Bright Line / Bright Field Metric

SKU
2024BL
Overview
Ships in 4 Weeks

Bright line & bright field reticles, metric micrometers

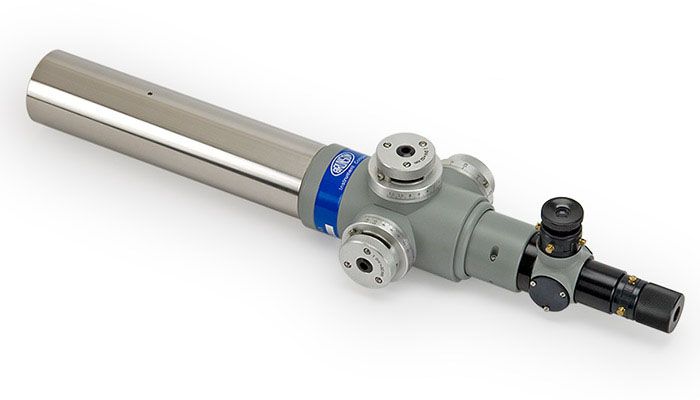

Like most of our alignment telescopes, the 2024BL uses the design of the 2022 as its basic building block. However, the 2024BL has metric micrometers as well as a right angle eyepiece and a two-reticle system consisting of a dark field, bright line reticle as well as a bright field, dark line reticle. These features specifically enhance the unit's accuracy and ease of use when autocollimating. The 2024BL includes a built-in auto-reflection target on the objective lens. An autocollimation illumination unit (our model 509) is included with the instrument.

See also similar instrument 2030 (with micrometers graduated in English units) and read more about our alignment telescopes.

Eyepiece: Fully erect image; diopter scale. Right-angle eyepiece and complete projection accessories available.
Focusing knob:  Drum graduated to show focusing distance in meters.
Optical micrometer:
  • Built-in horizontal and vertical optical micrometers
  • Displacement: ±1.2 mm, direct reading to 0.02 mm
  • Accuracy: ±0.005 mm over full range
  • Scale graduations are red and black to indicate direction of displacement

May Be Used With

187-S Coincidence Striding Level
2230 Right Angle Eyepiece (discontinued)
3205 Cross Level
3220 Coincidence Striding Level (discontinued)
509 Light Source
508 Light Source (discontinued)
Any of our alignment telescope bases

Specifications
Barrel Diameter 57.14492 mm (+0, -0.0076 mm) or 2.2498" (+0", -0.0003") - meets A.I.A. specifications
Barrel Length 233 mm
Length in 17.75
Reticle All-purpose, double glass, dustproof; cross-pattern with single lines
Telescope Barrel Through-hardened stabilized Stainless Steel
Weight, Product (Approx.) lb 11.5
Weight, Product (Approx.) kg 5.2
