AlignCam® System

SKU
AlignCam

Industry Applications

The AlignCam solution is ideal for a variety of measurement and inspection applications, such as turbomachinery centerlines, drive system alignment, timber processing mills, precision leveling of machine bases, and other machine alignment challenges. Using a wireless connection and remote monitoring, techs can view targets, share their readings and collaborate with team members anywhere on the job site or around the world.

View Alignments Live, On Screen

AlignCam is a digital upgrade for Brunson's current line of alignment telescopes, levels and transits used extensively in the field. AlignCam provides a live image and continuous feedback on sight lines, so a field technician can make real time adjustments to achieve precision alignments.

This solution is ideal for repetitive measurement tasks and a variety of applications such as turbomachinery centerlines, drive system alignment, timber processing mills, precision leveling of machine bases, and other machine alignment challenges.

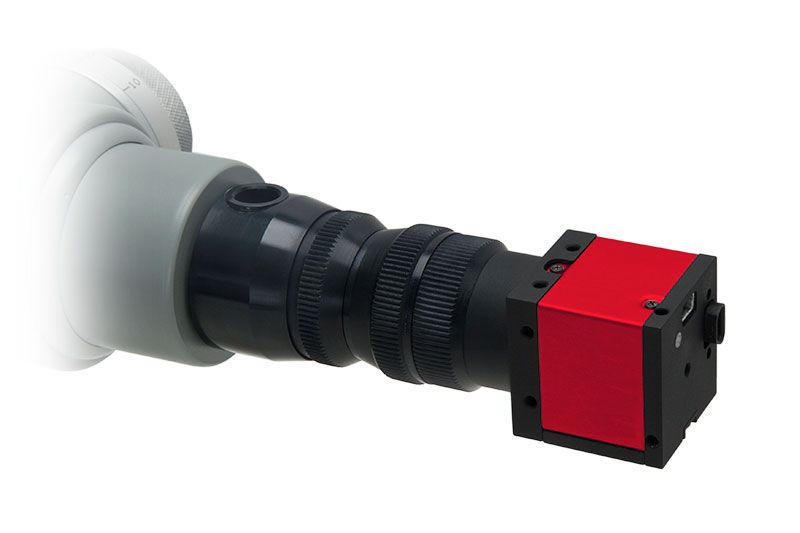

The AlignCam solution includes a digital camera with a high quality CMOS sensor, an instrument adapter, and Brunson's TeleView® software. AlignCam's mobile option allows a single operator to view the target on a mobile device anywhere in the workspace.

AlignCam dramatically improves user ergonomics for completing alignment tasks in the field or the lab.

This system upgrade is designed for quick, on-site user installation. A field technician simply connects the camera assembly to the optical instrument, then plugs the USB cable into the camera and computer. Power is supplied to the camera via a USB cable.

AlignCam Mobile Option

AlignCam Mobile Option Kindle Fire

Using the AlignCam mobile option, field technicians can make real-time adjustments while watching the target image from anywhere on the jobsite using a wireless mobile device. Live images can also be shared with team members in other locations, both locally and around the world.


Features

AlignCam adds flexible functionality to our alignment telescopes. This configurable system is ideal for many applications such as:

  • Repetitive measurement tasks
  • Easy viewing of difficult set-ups in the field or the lab
  • Easier real-time feedback during machine adjustment
  • Remote monitoring to view targets from across the room, from multiple locations, or on the other side of the world.
  • Live viewing for multiple people
  • Training and classroom settings

Specifications

Camera:
Size: 1.18" x 1.18" x 1.6" (32 mm x 34 mm x 34.4 mm)
Weight: 0.17 lbs. (80g)
Sensor: Color CMOS, 1/3 inch
Resolution: 1280 x 960 (1.2MP)
Frames/second: Bus dependent, 52 max

Instrument Adapter: (varies with kit)
Size: 3.0" length x 1.5" dia. (76.2 mm x 38.1 mm)
Weight: 0.40 lbs. (0.18kg)

Computer Requirements:
Operating system: Windows 10 or 11
Architecture: 32 or 64 bit
Processor: 2.6 GHz minimum
RAM memory: 4GB minimum
USB ports: Minimum USB 3.0 (1 required)

Cable:
Type: Micro-b USB 3.0 to USB A 3.0
Length: 15' (4.6 meters)


What's Included

Digital camera
Instrument adapter
Protective storage case
Protective dust cap
15' (4.6 meters) USB cable
TeleView™ Software
Owner's Manual


Accessories

AlignCam Remote Monitoring Kit (8490)

Remote Monitoring Kit (8490)

A portable, turnkey solution is available to allow remote monitoring of the camera image. The kit includes a preconfigured laptop for fast and simple operation. The hard case safely transports the camera kit as well as the components listed below.

  • Laptop
  • Wireless-enabled Tablet
  • Wireless Router
  • Network Cable
  • Hard Shell, Watertight, Rolling Carry-On Case

May Be Used With:

Camera Kit Model Compatible Instruments
8420-2140SE-M Alignment Scopes: 2022, 2024, C47280
8430-2140SE-M Linescopes: 2062, 5380000-1
8440-2140SE-M Jig Transits and Levels: 771, 771-H190, 75, 75-H, 76-R, 76-RH190, 545-160, 545-190
8450-2140SE-M Bright Line Instruments: 2030, 2024BL
