5035 Very Short Stand 14"- 17" (36-43 cm)

SKU
5035

For cramped spaces and low setups

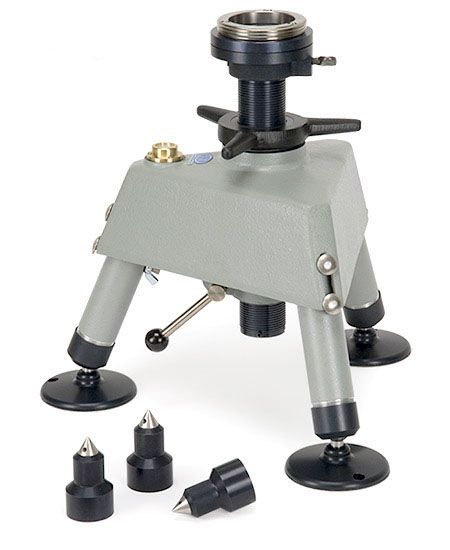

The 5035 miniature stand is essentially identical to our 5030 stand except for the fact that very short, non-telescoping legs are used. The 5035 utilizes the same top assembly as the 5030, including the tribrach (shoulder), instrument post, handwheel, and rotating mount. The height of the 5035 is adjustable from 14" to 17" (35.6 - 43.2 cm) using the adjustable center column. A bull's eye vial is mounted on the top of the tribrach to aid in leveling the stand. Both types of feet are included with the 5035 (trivet points and swivel pads).

If you already have a 5030 stand and want to convert it to a 5035, you can do it with our 5037 Short Leg Kit. This kit consists of the three short legs, trivet points, and required mounting hardware. Simply remove the standard legs from the 5030 and bolt on the new ones.

Note: Neither the trivet point nor swivel pad feet on these short legs will fit the standard legs for the 5030.



May Be Used With

Products with an internal 3½"-8 thread
Many of our instrument adapters
Not to be used with 3D instruments



Specifications
Min Height in 14
Min Height mm 14
Max Height in 17
Max Height mm 17
Max Height (mm) 432
Min Bore Diameter 356
Weight, Product (Approx.) lb 16
Weight, Product (Approx.) kg 7.3
Weight, Shipping (Approx.) lb 20
Weight, Shipping (Approx.) kg 9
