235-16 Lateral Slide Adapter

SKU
235-16
Overview
Ships in 2 Weeks

Converts Brunson Intermediate Tube to Dovetail Mount

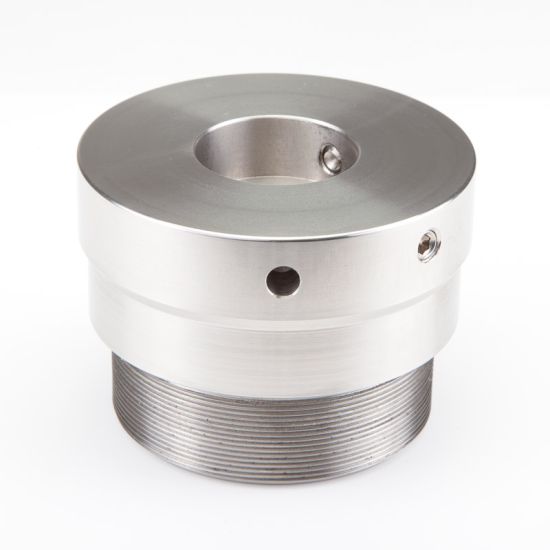

The 235-16 has a 2.825"-20 NS - 2 external thread which allows it to fit into the intermediate tubes in many of our stands. A recess in the top of this adapter will accept a dovetail mount such as that found on our various lateral slides. Socket head setscrews secure the inserted dovetail, and allow the lateral slide (or other dovetail-equipped unit) to rotate into any azimuth direction until tightened.

You can also look at all of our instrument adapters, or see an entire selection of heavy duty and portable, on this website.

May Be Used With

Accepts these products:

  • 235-12 Precision Lift Adapter
  • 802, 802-3 Precision Lateral Slide

Fits into any product having an internal 2.825"-20 NS - 2 thread

Specifications
Effective Height 1.375" (34.9 mm) – this is the vertical distance between the lower interface surface (on this adapter, the very bottom) and the top
External Thread 2.825"-20 NS - 2
Internal Thread 3-1/2"-8
Weight, Product (Approx.) lb 3
Weight, Product (Approx.) kg 1.36
