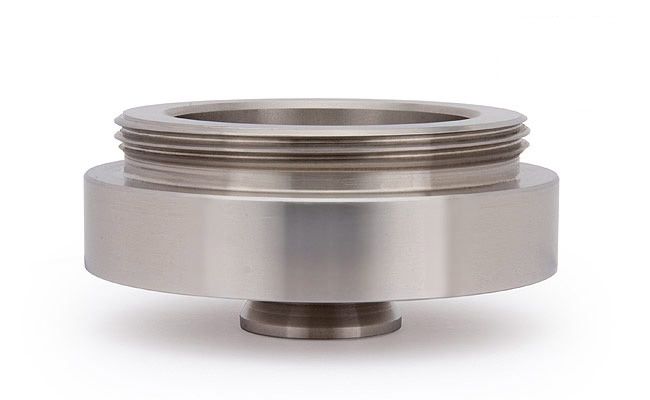

235-12 Precision Lift Adapter

SKU
235-12
Overview
Ships in 2 Weeks

Converts a dovetail receptacle to a 3½"-8 thread

The 235-12 seats into the dovetail receptacle mount (like that found on a model 800 precision lift) and has a standard 3½"-8 external thread on top.

You can also see an entire list of our instrument adapters on this website.

May Be Used With

Fits into/on these products:

  • 235-16 Lateral Slide Adapter
  • 235-17 Dovetail Adapter
  • 800 Precision Lift

Also accepts any product having an internal 3½"-8 thread

Specifications
Effective Height 0.797" (20.2 mm) – this is the vertical distance between the lower interface surface (not the bottom of the dovetail) and the bottom of an instrument which is mounted on top of the unit
External Thread 3-1/2"-8
Material Stainless Steel
Weight, Product (Approx.) lb 3
Weight, Product (Approx.) kg 1.36
