562-VA V-Block Scale Holder

SKU
562-VA V-Block Scale Holder
Overview
Ships in 2 Weeks

Hold scales against rolls and shafts

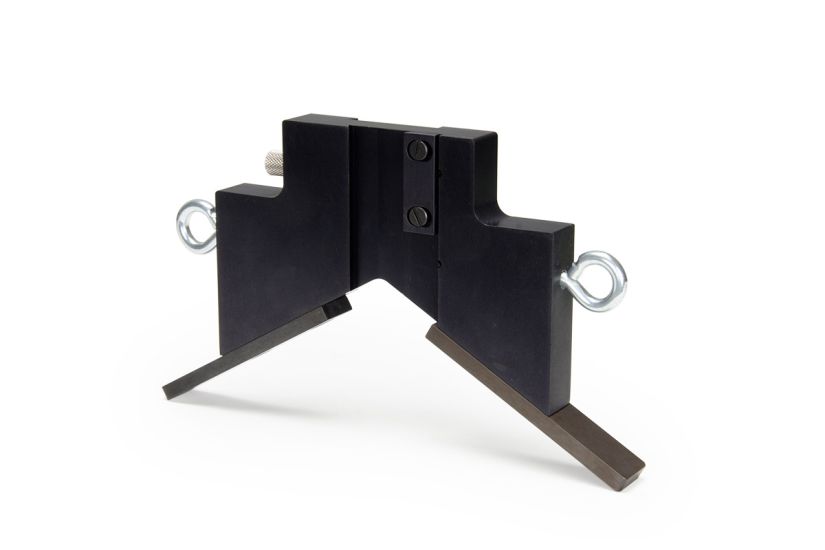

The 562-VA helps you place a scale against many cylindrical drums or rolls, and hold the scale nominally on a diameter of the roll. The 562-VA set includes two scale holders: one 562-VA-120 V-block (120°), and one 562-VA-160 V-block (160°). One side of the V-block holds our 40" or 1000mm scales, and the other side holds all of our smaller scales (see photo below). Eyebolts allow the use of straps or tie-downs for extra security.

Note: The 562-VA is a set consisting of both V-blocks, but each V-block may also be purchased individually (see table below).

Model Description Fits
562-VA 562-VA-120 and 562-VA-160 V-block scale holders with case 2" - 48" Diameter Rolls
5 cm - 1.2 m
562-VA-120 120° V-block scale holder with case 2" - 20" diameter rolls
5 - 51 cm
562-VA-160 160° V-block scale holder with case 15" - 48" diameter rolls
38 cm - 1.2 m



May Be Used With

6003, 6005, 6010, 6020, and 6040 scales
6080M, 6130M, 6250M, 6500M, and 6050M
Also discontinued scales 564W-10, 564W-20, and 564W-40
