270BN Universal Short Range Calibrator

SKU
270BN
Overview
Ships in 4 Weeks

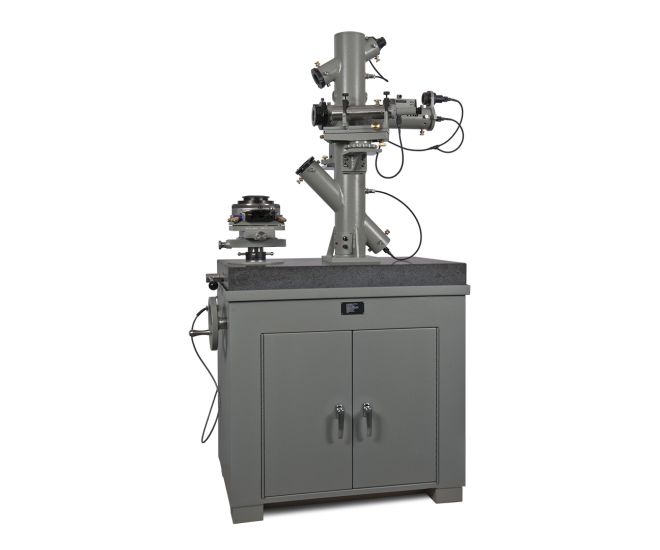

Take care of your optical instrument calibration requirements in-house with the 270BN Universal Short Range Calibrator. This compact, self-contained unit lets you easily calibrate all kinds of optical and electronic theodolites, autolevels, total stations, optical tooling instruments and accessories with complete NIST certification capability.

The 270BN features an efficient, compact design that places all controls within easy reach and all components strategically positioned for efficient operation. The 270BN will accommodate all types of optical instruments and features positive indexing of angles with one quarter arcsecond accuracy. A 4" thick granite surface plate and heavy gage, enclosed steel cabinet provide excellent stability.
Unit can be modified per client specifications.

Features

  • Allows evaluation of opto-mechanical system geometry
  • Complete auto-collimation capability for ultimate accuracy
  • One-degree azimuth indexing with one quarter arcsecond accuracy
  • Provides for all necessary instrument translations and rotations in X, Y and Z axes
  • Adjustment of coincidence-type vials, vertical circle index settings, and automatic levels using a gravity-referenced mirror

Calibrations

The following is a partial list of the instrument calibrations which may be conducted with the 270BN:

  • Bearing runout, horizontal and vertical
  • Collimation, horizontal and vertical
  • Optical/mechanical axis centering
  • Line-of-sight straightness
  • Line-of-sight concentricity
  • Plumbline/trunnion axis
  • Cross-scope collimation
  • Level vials Optical micrometer
  • Infinity focus
  • Auto-reflection target position
  • Compensator adjustment
  • Level referenced at infinity
  • Optical plummet
  • Angular accuracy
  • Reticle rotation

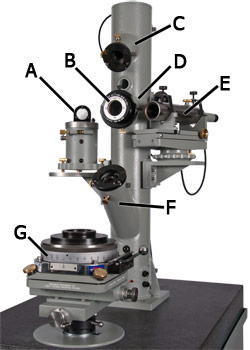

Included Components

A: 287-1 Leveling Mirror



B: 390 Optical Wedge

C: 11196-G2 Optical Plummet Collimator

D: 272-15 Multiple Target (line-of-sight) Collimator

E: 2062 Alignment Telescope

F: 272-1 Infinity Collimator

G: 13202 Ultradex Table, ¼ arcsecond accuracy

(also included):



 (1) Micrometer Calibration Target

(1) 187-S Stride Level

(1) Auto Collimating Mirror

(1) 235-5 Theodolite Adapter

(2) 88-6 Tilt mounting base

(1) 802-3 Compound precision slide

(1) 800 Precision lift

(1) Operating manual
Specifications
Finish Grey
Height in 72
Height mm 1829
Table Height in 37.5
Table Height mm 953
Weight, Product (Approx.) lb 1100
Weight, Product (Approx.) kg 499
Weight, Shipping (Approx.) lb 1261
Weight, Shipping (Approx.) kg 572
