For Instruments with 3/8"-16 Mount Requirements

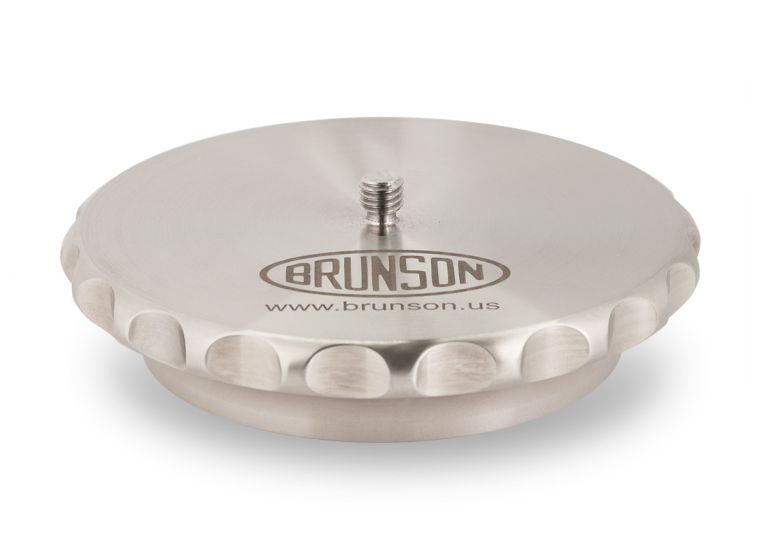

The 235-5-2 converts a 3½"-8 standard external instrument thread on any stand or adapter into a 3/8"-16 external thread to accommodate most theodolites or other instruments.
Be sure to have a look at all of our instrument adapters for 3D or alignment instruments.
May Be Used With
Fits on any product having an external 3½"-8 thread
Accepts instruments requiring a 3/8"-16 mount
| Effective Height | 1.092" (27.7 mm) – this is the vertical distance between the lower interface surface (on this adapter, the very bottom) and the top, on which the instrument would rest |
|---|---|
| Internal Thread | 3-1/2"-8 |
| Material | Stainless Steel |
| Weight, Product (Approx.) lb | 3 |
| Weight, Product (Approx.) kg | 1.36 |
