235-18 Surface Mount Adapter

SKU
235-18
Overview
Ships in 2 Weeks

Put an instrument mount anywhere!

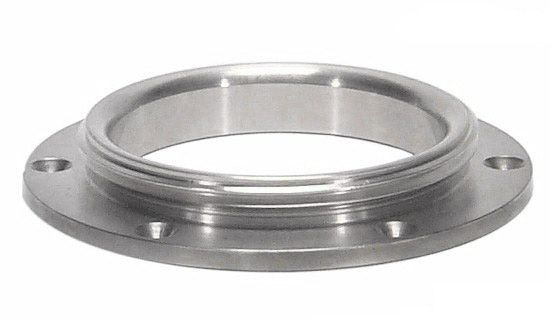

The 235-18 allows you the flexibility of having an instrument mount anywhere you want one! This adapter provides a 3½"-8 external thread as a mount for many instruments and other adapters. The 235-18 is configured to mount on any flat surface. A flange with six countersunk bolt holes is provided for secure mounting. You may also be interested in our 5146, which does not have the flange, or the 235-6, which has the same functionality but also has internal threads to accommodate other products such as our model 800 precision lift.
Be sure to have a look at all of our instrument adapters for 3D or alignment instruments.


May Be Used With

Fits on any customer-supplied surface with a matching bolt-hole pattern

Accepts any product having an internal 3½"-8 thread



Specifications
Bolt Hole Pattern The six countersunk holes are 0.169" in diameter, 60° apart on a bolt circle of 3-15/16" diameter
Effective Height 0.187" (4.7 mm) – this is the vertical distance between the very bottom of the unit and the top interface surface, which would coincide with the bottom of an instrument or adapter which is mounted on top of the unit
External Thread 3-1/2"-8
Weight, Product (Approx.) lb 1
Weight, Product (Approx.) kg 0.5
