For Permanent Installations
A variety of stand adapters, slides, lifts, and various instrument mounts fit into the intermediate tube.

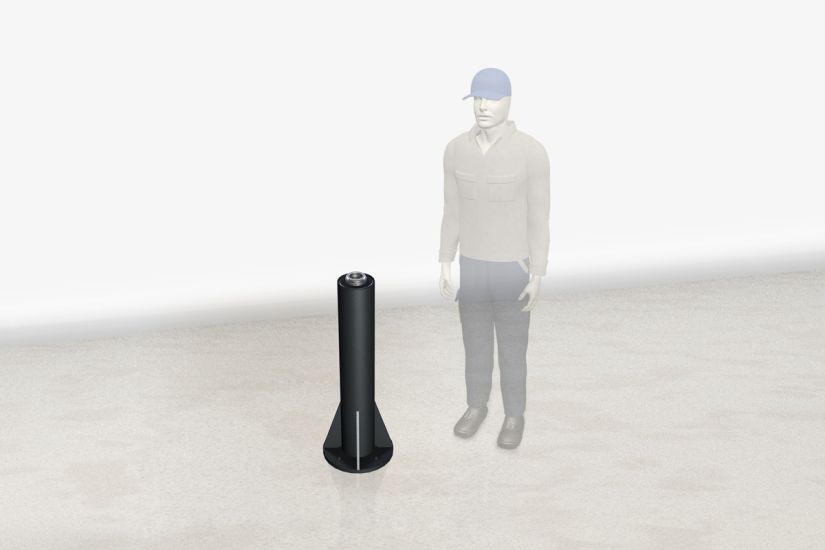

The baseplate is a 1" (2.54 cm) thick steel plate with a diameter of 15" (38.1 cm). Four 1-1/16" (2.7 cm) mounting holes are equally spaced on an 11" (27.9 cm) diameter bolt circle on this baseplate. It is also outfitted with four 5/8"-11 UNC-2B threaded leveling screws on a 14" (35.6 cm) diameter bolt circle to provide a means for adjustment to set the stand vertical.
Stands in this group are used for permanent installations of all types of metrology instrumentation, and are often used in test, calibration, or constant monitoring applications.
Standard options for 239
|Model and Height||Description||Adapter|
|Model 239STK with 235-3 hollow adapter having 3 1/2" - 8 thread (shown right). The 235-3 adds 0.975" (24.8 mm) to the stand height.|
May Be Used With
Virtually any instrument or adapter having an internal 3½"-8 thread
Many of our stand accessories and instrument adapters
