For headrig primary breakdown line alignment
The Rail Alignment Kit (9106) brings an innovative solution to an old problem: the proper alignment of a headrig primary breakdown line. When coupled with our Sawmill Kit (9105), the Rail Alignment Kit provides fast, accurate alignment of headrig carriage rails, band mill wheels and saws. These kits also guide the alignment of overhead end-dogger and round rail carriage systems.
Misalignment of these components can drastically reduce a log's yield. The Rail Alignment Kit helps restore these machines to proper specifications, simultaneously recovering lost revenue and improving lumber quality.

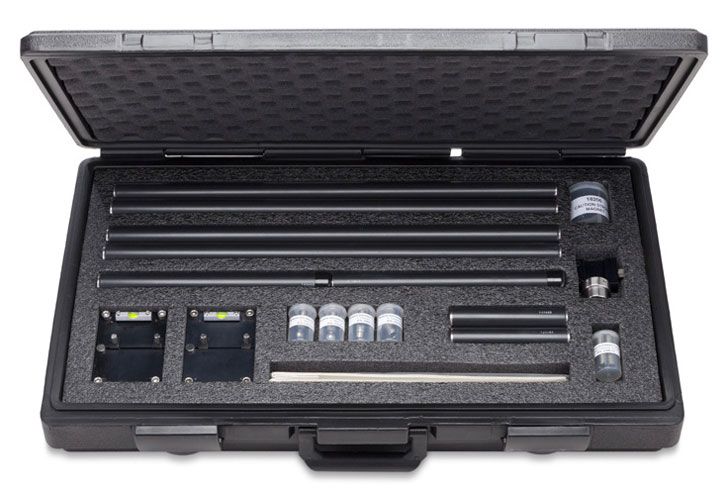

Rail Alignment Kit Components
| Legend | 9106 English Kit | 9106-M Metric Kit | Components | Qty |
| A | 10 in scale | 250 mm scale | 6010 (English) 6250 (Metric) |
2 2 |
| B | 20 in (508 mm) Extension Rod | 12473-20IN | 4 | |
| C | 10 in (254 mm) Extension Rod | 12473-10IN | 2 | |
| D | 5 in (127 mm) Extension Rod | 12473-5IN | 2 | |
| E | Connector, Extension Rod | 12406-1 | 10 | |
| F | Ball End Tip | 12410-G1 | 2 | |
| G | 1 in (25.4 mm) Concave End Tip | 12410-G2 | 2 | |
| H | Magnetic Base | 18312 | 1 | |
| I | Scale Holder, Extension Rod | 8665-G1 | 1 | |
| J | Scale Holder, Rail Fixture | 18163 | 2 | |
| n.a. | Plastic Case w/ Foam Insert (not shown) | 18316 | 1 | |
| Case | Includes custom foam insert |
|---|---|
| Case Length | 26" (660 mm) |
| Case Width | 16" (406 mm) |
| Case Height | 4.75" (121 mm) |
| Rod Length Tolerances | ±050 in (±1.3 mm) |
| Weight, Product (Approx.) lb | 16 |
| Weight, Product (Approx.) kg | 7.2 |
