235-20 Romer Adapter

SKU
235-20
Overview
Ships in 2 Weeks

Use your Romer portable CMM with a Brunson stand

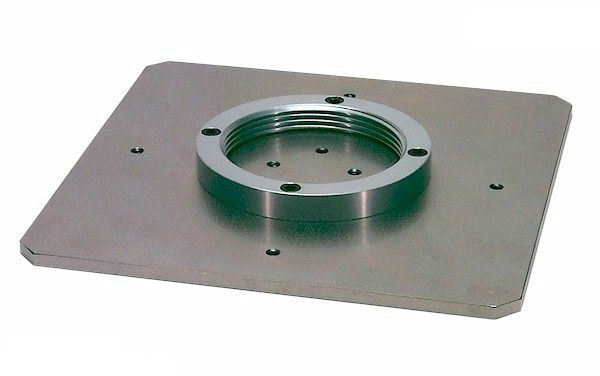

The 235-20 Plate Adapter is used to mount various Romer portable CMMs to any number of our stands. A plate is supplied with two bolt patterns which fit various Romer "arm" mounting configurations. The square plate is made of steel to accommodate magnetic-type mounting. A ring with a 3½"-8 internal thread to fits our stands is attached to the bottom side of this plate. The photograph at left shows the 235-20 upside down for clarity.

Be sure to have a look at all of our instrument adapters for 3D or alignment instruments.

Specifications
Effective Height 13/16" (4.7 mm)
Large Bolt Circle 4 holes tapped through with M6 thread on 7" diameter.
Length in 9
Plate Material Steel
Plate Size 9" Square
Plate Thickness 1/4"
Small Bolt Circle 4 holes tapped through with M6 thread on 1.575" diameter, for Romer “puck” mount
Weight, Product (Approx.) lb 7
Weight, Product (Approx.) kg 3.18
Width mm 228.6
Width in 9
