232 Series Heavy Duty Stands

SKU
232 Series Heavy Duty Stands
Overview
Ships in 4 Weeks

The tall one!

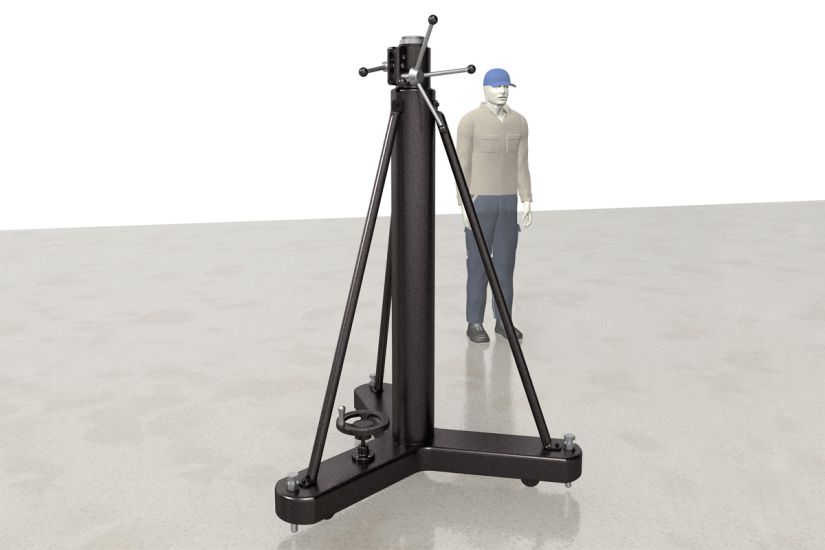

Our 232 Series stands are great for those special jobs where reaching the heights is required. The 232 is available in a number of configurations, whose working heights range from a minimum of 67" (1.7 m) to as high as 112" (2.84 m), depending upon the configuration desired. Stand height is measured from the floor to the top of the intermediate tube, on which all instrument mount accessories are attached. This height specification does not include the added height and range any of our stand accessories or instrument adapters.

A wide variety of our stand adapters, slides, lifts, and various instrument mounts fit into the intermediate tube, which is outfitted with the same 2.825"-20 thread as the intermediate tube on our other, shorter stands.

The 232 Series is also available in a "hollow" version, which means that there is an unobstructed vertical path straight down through the center of the stand. This is useful in certain applications when it is critical to position the stand over a specific point. Any stand or accessory designated as "hollow" has this characteristic.

Stands in this group are used to support all types of metrology instrumentation, and customers who use this stand need stability in high places. Mobility around the shop floor is permitted using the drop-down casters under the heavy-duty tribrach base which are engaged and released by a handwheel crank mechanism. An air-check mechanism provides backup protection to prevent sudden drops of the instrument column in case the operator simultaneously releases the collar lock and main handle while disengaging the ratchet pawl.

For general information about this stand, you can read more about our heavy duty stands on this website.

Note: If these stands are not tall enough for you, check out the 232-SP Series stands, or contact us for a custom stand quote. We have built various stands and vertical tooling bars as high as 40 feet.

Standard options for 232 Series stands

Model and Height Description Adapter
232-0
68" - 113"
173 - 287 cm

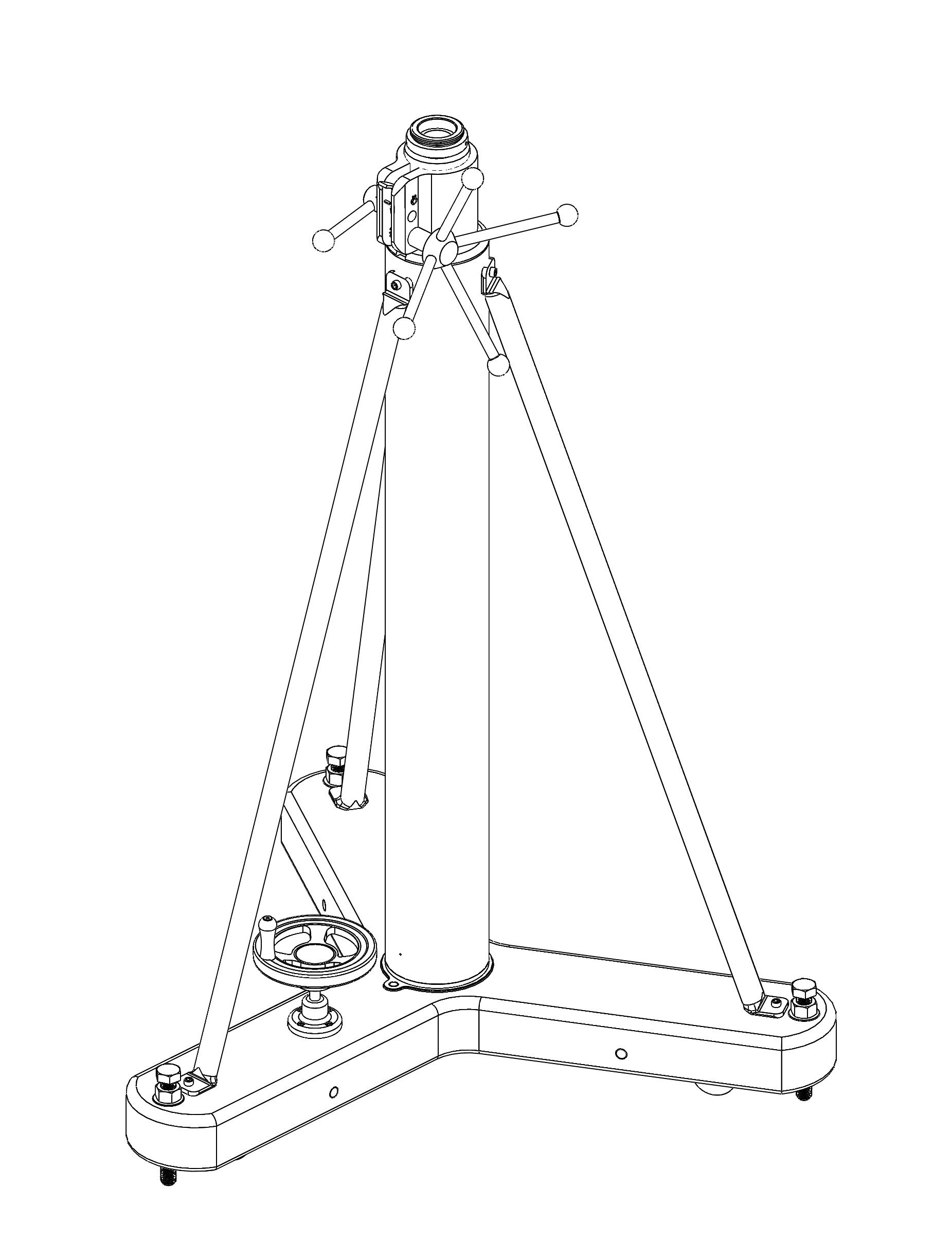

Model 232STK with 235-3 hollow adapter having 3 1/2" - 8 thread (shown right). The 235-3 adds 0.975" (24.8 mm) to the stand height.Weight: 587 lbs (267 kg)
232-H0
68" - 113"
173 - 287 cm
Model 232STK-H "hollow" with 235-3 hollow adapter having 3 1/2" - 8 thread (shown right). The 235-3 adds 0.975" (24.8 mm) to the stand height.

May Be Used With

Virtually any adapter or instrument having an internal 3½"-8 thread
Any of our entire line of stand accessories and instrument adapters

Specifications
Finish Black
Min Height in 68
Min Height mm 1,727
Max Height in 113
Max Height mm 2870
Max. Load (lb) 150
Max. Load (kg) 68.2
