Overview

Ships in 2 Weeks

For ease of use and superior handling

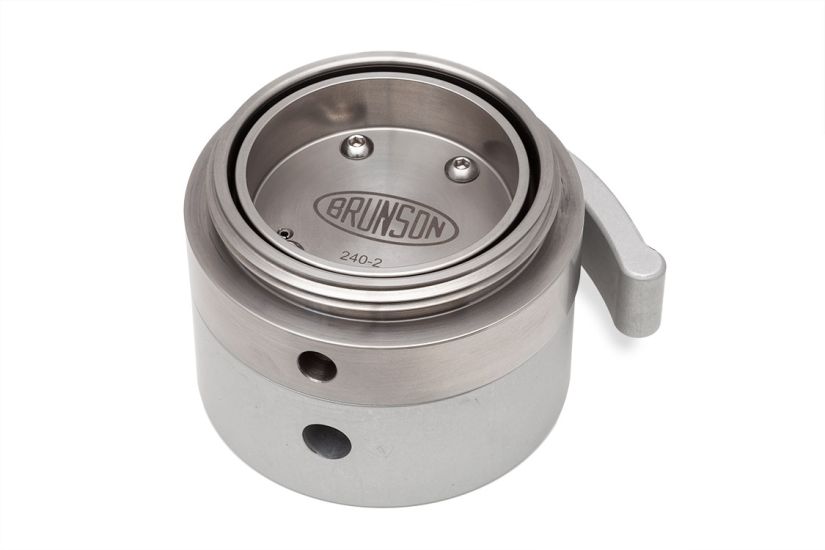

The EasyConnect 240-2 creates a fast and easy way to connect and disconnect your instrument from a standard 3½"-8 mount. No more spinning of your instrument to thread it on or off its mount. The EasyConnect has a unique clamping system that allows easy connection to and separation from a standard mount through the use of a quick-action locking lever. The 240-2 includes an anti-tipping feature to protect the instrument from falling off the stand. The EasyConnect attaches to any stand or other accessory having a 3½"-8 external thread.

A hole is located in the center of the base, for plummet shots when using optical transits and hollow stands.

Extensions mounted above the quick release are not recommended.

You may also wish to look at our other stand accessories.

Components Available Separately

Part number Description
19056 3½''-8 threaded ring only
19058 Base assembly without ring

May Be Used With

Fits on any product having an external 3½"-8 thread
Accepts any product having an internal 3½"-8 thread

Specifications
Diameter in 4
Diameter mm 102
Effective Height 2.4″ (60 mm)
Material Stainless steel and anodized aluminum
Weight, Product (Approx.) lb 3.6
Weight, Product (Approx.) kg 1.6
