234 Series Stand Extensions

SKU
234

When you need just a little more height

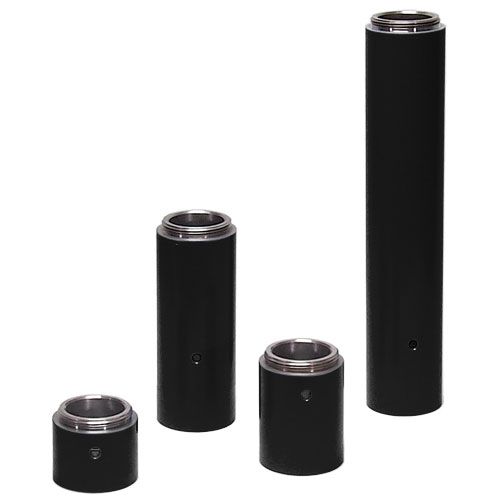

The 234 Series of stand extensions increase the effective stand height from 3" (7.6 cm) to 48" (122 cm), depending upon model (see table below). Although these tubes are not designed to provide a precision height standard, metric extension tubes are also available as a complement to an all-metric system. Made of your choice of heavy-walled steel or aluminum tubing with a standard 3½"-8 thread on each end (one internal on the bottom to fit the stand, and one external on the top to fit an instrument or adapter).

Note: Extension tubes are provided to increase versatility of measurement systems. Excessive stand height build-up using extension tubes is not recommended due to the possibility of decreased stability and accuracy.

Have a look at our range of heavy duty and portable stands.

Specifications

Steel

English Metric
Model Height Approx. Wt. Model Height Approx. Wt.
234-3 3'' 5 lbs 234-200 200 mm 4.5 kg
234-5 5'' 7 lbs 234-400 400 mm 8.1 kg
234-10 10'' 12 lbs 234-600 600 mm 11.6 kg
234-20 20'' 22 lbs 234-1000 1000 mm 18.8 kg
234-40 40'' 42 lbs
234-48 48'' 50 lbs



Aluminum

English Metric
Model Height Approx. Wt. Model Height Approx. Wt.
234AL-5 5'' 4 lbs 234AL-200 200 mm 2.2 kg
234AL-10 10'' 5 lbs 234AL-400 400 mm 3.1 kg
234AL-20 20'' 8 lbs 234AL-600 600 mm 4.0 kg
234AL-40 40'' 13 lbs 234AL-1000 1000 mm 5.9 kg
234AL-48 48'' 15 lbs



May Be Used With

Fits on any product having an external 3½"-8 thread
Accepts any product having an internal 3½"-8 thread
