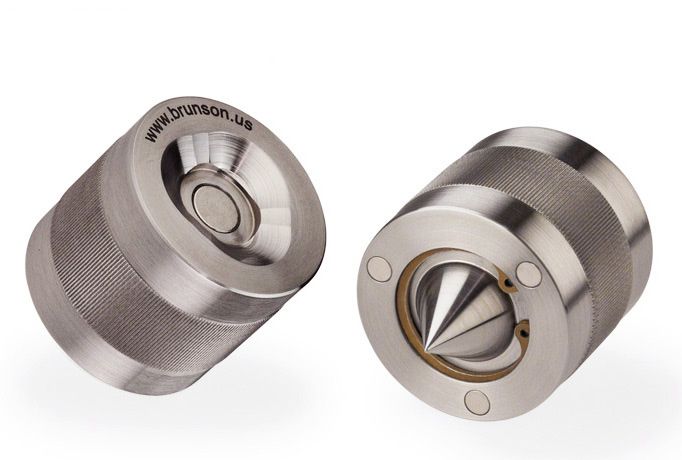

1.5THSC Self-Centering SMR Adapters

SKU
1.5THSC
Overview

Ships in 1 Week

Conical plunger centers itself on multiple diameters

The 1.5THSC magnetic adapter is used to gather quick data points over a range of hole sizes using a single adapter. The secret? A spring-loaded, cone-shaped, locating plunger (illustration below). This adapter will locate on hole sizes 0.100" to 0.625" (2.5 mm to 16 mm). Keep in mind that we can also make these adapters to fit other hole diameters on request. Three strong magnets on the bottom keep the adapter squarely on any ferrous surface, and counteract the spring-loaded force of the plunger. The adapter is reliable and repeatable. A knurl around the outer perimeter assists in removal after measuring is finished. The adapter holds the centerpoint of a 1.5" diameter SMR 2.000" (or 50 mm for the metric version) above the surface of the part and on centerline of the hole to a tolerance of ±0.001" (±0.025 mm). The SMR seats on a 3-point conical land and is held in place by a magnet.
Model Offset "A"
English 1.5THSC-2 2.000"
Metric 1.5THSC-50MM 50 mm

May Be Used With

Any 1.5" diameter SMR
1.5LK-F Deluxe Lanyard Kit

Specifications
Centering Accuracy ±0.001" (±0.025 mm)
Diameter in 1.6"
Diameter mm 40.6 mm
Hardness HRC 42-45
Height in 0.63
Height mm 16
Material Stainless Steel
