1.5THSB Series Diamond Shank Adapters

SKU
1.5THSB
Overview

Ships in 1 Week

For slotted bushings

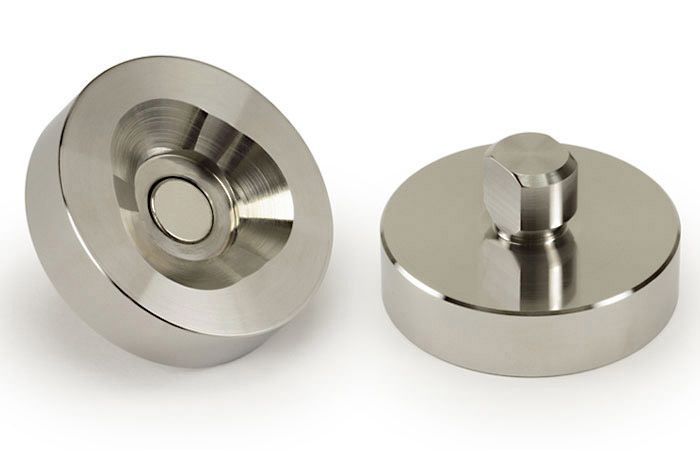

The 1.5THSB "diamond shank" adapter provides an SMR nest for use with slotted bushings found in many fixtures and parts. The cross section of the shank on these adapters is a circle with two flattened sides.


The center of a 1.5" SMR is held precisely 1.000" (English unit version) or 25 mm (metric unit version) from the surface of the part. It seats on a 3-point conical land and is held in place firmly by a magnet.


May Be Used With

Any 1.5" diameter SMR

Specifications
Flat-to-flat shank width tolerance -0.0001", -0.0005" (+0.003 mm, -0.013 mm)
Hardness HRC 42-45
Material Stainless steel
Offset Tolerance ±0.0005" (±0.013 mm)
Shank Diameter Tolerance -0.0001", -0.0005" (+0.003 mm, -0.013 mm)
Target Centering in ±0.0005
Target Centering mm ±0.013 mm
