1.5THS Series Corner Adapter

SKU
1.5THS
Overview

Ships in 1 Week

Backed into a corner?

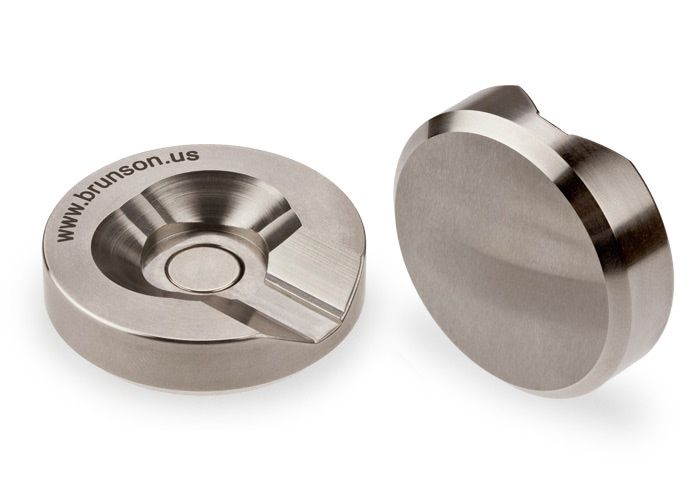

The 1.5THS magnetic adapter provides an SMR nest which fits into any corner and puts a 1.5" diameter SMR exactly 0.800" away from the rising surface, within ±0.0005". It also holds the centerpoint of the SMR 1.000" (or 25 mm for the metric version) ±0.0005" above the base surface. A chamfer on the bottom side of this adapter provides a relief for any fillets or various strange things happening at the junction between the surfaces of the object being measured. The SMR seats on a 3-point conical land. An optical alley allows the SMR to be rotated down further for a lower shooting angle. Use the table below to find the item number for the desired target offset.
Model Offset "A" Tolerance
1.5THS-1 1.000" ±0.0005"
1.5THS-25MM 25 mm ±0.013 mm

May Be Used With

Any 1.5" diameter SMR

Specifications
Diameter in 1.6"
Diameter mm 40.6 mm
Fits hole sizes 0.100" - 0.625" (2.5 mm - 16 mm)
Hardness HRC 42-45
Material Stainless Steel
Offset Tolerance ±0.0005" (±0.013 mm)
Target Centering Tolerance ±0.0005" (±0.013 mm)
