330 Approximately 38" - 63" (97-160 cm)

SKU
330-0
This is non stock item.

For Collimation Test Stands and Permanent Fixtures

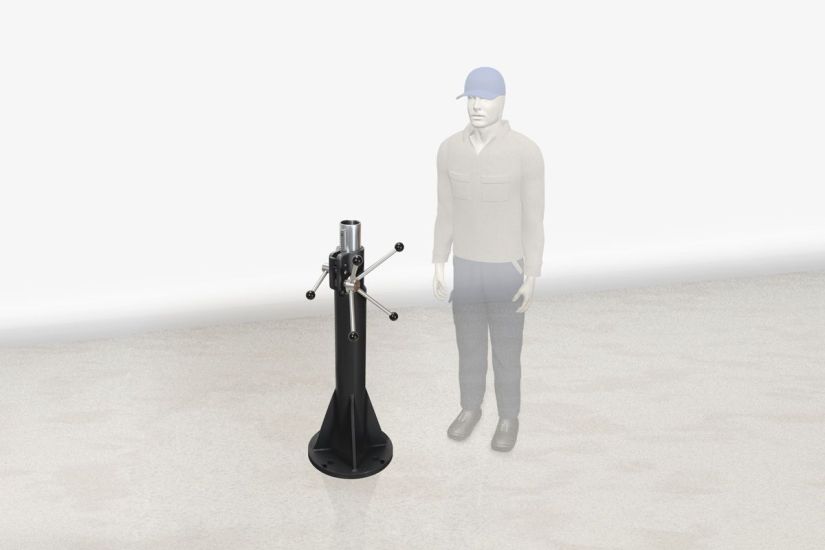

The 330 Type pedestal stands are ideal for permanent installation of collimation test stands requiring a variable-height instrument column. This stand has a working height range from a minimum of 37" (94 cm) to a maximum of 62" (157.5 cm), not including any adapters which may be mounted on top of the intermediate tube. This height measurement is taken from the floor to the top of the intermediate tube, on which all instrument mount accessories are attached. Custom heights are easily manufactured.

A variety of stand adapters, slides, lifts, and various instrument mounts fit into the intermediate tube. The stand has an air cushion damper to prevent the column from "free falling" and damaging the instrument in the event that the collar lock, ratchet pawl, and lift handle are released at the same time.

The baseplate is a 1" (2.54 cm) thick steel plate with a diameter of 15" (38.1 cm). Four 1-1/16" (2.7 cm) mounting holes are equally spaced on an 11" (27.9 cm) diameter bolt circle on this baseplate. It is also outfitted with four 5/8"-11 UNC-2B threaded leveling screws on a 14" (35.6 cm) diameter bolt circle to provide a means for adjustment to set the stand vertical.

Stands in this group are used for permanent installations of all types of metrology instrumentation, and are often used in test, calibration, or constant monitoring applications.

Standard options for 330 Pedestal Stand

Standard options for 330 Pedestal Stand


May Be Used With

Accepts any product having an internal 3½"-8 thread
See also our entire line of stand accessories and instrument adapters
