6120 2-¼" Diameter Glass

SKU
6120
Overview
Ships in 2 Weeks

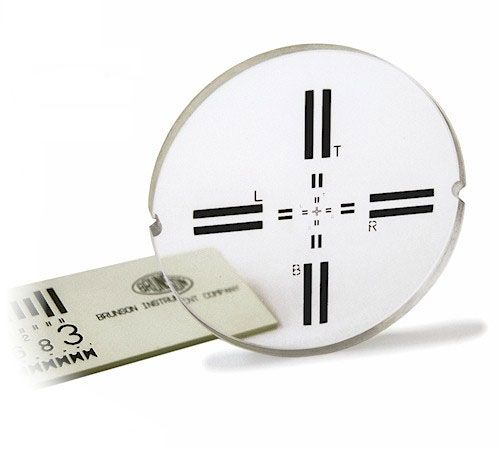

2¼" dia. Unmounted Glass Target

The 6120 paired-line glass target is an unmounted version of our 6110 target. The target pattern is centered within 0.0005" with respect to the outside diameter of the glass. It may be used in many alignment configurations, but is sized to fit our standard spherical adapters, such as our 521-B and the 5100 (discontinued). The target conforms to A.I.A. specifications.

National Stock Number: NSN-4920-00-509-5592

May Be Used With

521-B spherical target mounts
5100 spherical target mount (discontinued)

Many other configurations

Specifications
Glass Diameter 2-1/4"
Glass Thickness 1/4"
Mounting Detents 2.250" center-to-center, at 180°, 0.063" radius
