1½" dia. Unmounted Glass Target

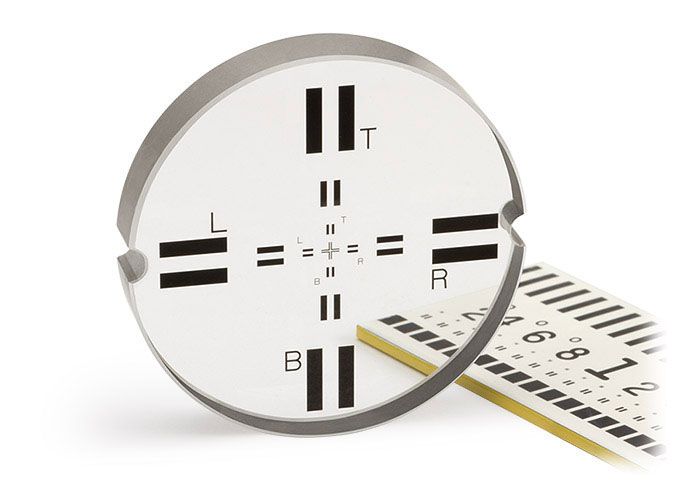

The 6125 unmounted multiple paired-line glass target may be used for many alignment applications (ex., bore alignments). The target pattern is centered within 0.0005" with respect to the outside diameter of the glass.
| Flat-to-flat shank width tolerance | 4 micrometers |
|---|---|
| Glass Diameter | 1.4990" (-0.0000", +0.0005") |
| Glass Thickness | 1/4" |
| Line Spacings | .004", .010", .025" & .060" (0.10 mm, 0.25 mm, 0.64 mm, 1.52 mm) |
| Mounting Detents | 1.500" center-to-center, at 180°, 0.063" radius |
| Parallelism | 10 arcseconds |
