Multiple Paired-Line Targets

SKU
711, 714 Multiple Paired-Line Targets
Overview
Ships in 2 Weeks

For use at multiple distances

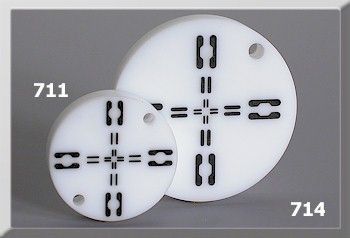

Our multiple paired-line targets are machine engraved and black filled on a circular white plexiglas blank. These targets have line pairs at four different spacings, which are useful at various sighting distances (see table below). They may be backlit for additional visibility in low-light applications. Backlighting this target when used as the far target in a line of bore targets gives a great diffuse backlight for the other targets in the line. The 2¼" (57.2 mm) diameter (model 714) may be used in our spherical targeting systems. The 1½" (38.1 mm) diameter target is model 711. These targets have holes drilled through on the target's diameter for mounting and to facilitate target removal from tight spots. We have other similar targets on this website.
Model Paired Line Spacings
1½"
(711)
0.020" (0.51 mm)
0.040" (1.01 mm)
0.050" (1.27 mm)
0.100" (2.5 mm)
2¼"
(714)
0.020" (0.51 mm)
0.040" (1.01 mm)
0.100" (2.5 mm)
0.160" (4 mm)
Specifications
Finish None
Max Operating Temperature 190° F (87° C)
Pattern Centered with respect to the diameter within 0.001" (0.025 mm), T.I.R.
Target Thickness Nominally 3/8″, actual thickness may vary due to nature of material
