381 Series Alignment Telescopes

381 Series Alignment Telescopes
Ships in 4 Weeks

Small but mighty

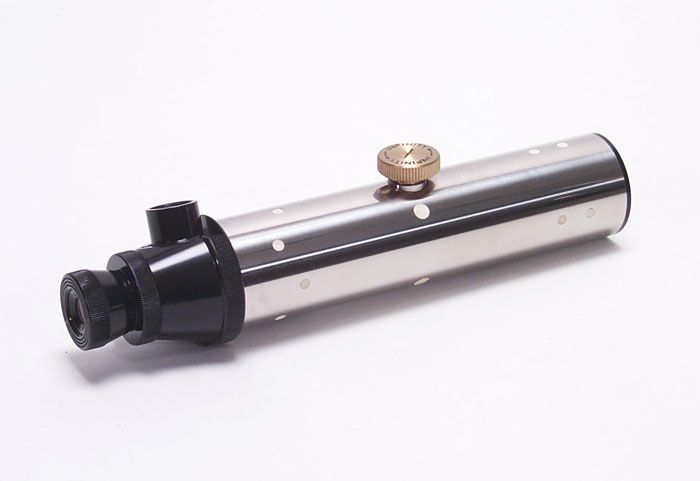

Functionally similar to the larger model 2062, the 381's compact size results in affordability without compromising accuracy. This instrument comes in two additional variations; the 381-S is identical other than having a special reticle, and the 381-1 has a right angle eyepiece which swivels to any axial orientation.

The 6.978" long barrel meets A.I.A. specifications, and is hardened and ground to assure good stability and accuracy. The barrel's outside diameter is 1¾".

The instrument contains an autoreflection target which is concentric to the line of sight within ±0.001". This target has paired-line spacings of 0.012", 0.036" and 0.110" for use at all distances up to 100 feet. (The target pattern also has a centered 0.092" radius circle target.) The target is illuminated from the rear by an autocollimation light source.

The model 381, 381-S, or 381-1 may be set up using mounting base model 88-6 or "V" blocks. Custom mounting hardware is available by request. Includes our 509 light source, offering cool LED lighting to decrease heat distortion.

For additional general information about this instrument, read about our alignment telescopes.

May Be Used With

88-6 Base
508 Light Source (discontinued)
187-S Stride level

Effective aperture 0.925″
Field of View 1 degree
Focusing Range 2″ to infinity
Length 9.5" (241.3 mm)
Magnification 20X at 2″ from objective; 30X at infinity
Main Telescope Image Erect
Optics Low reflectivity, protective coating
Reticle Glass, filar/bi-filar pattern (others available)
Telescope Diameter 1.7494″ to 1.7497″
Weight, Product (Approx.) lb 8
Weight, Product (Approx.) kg 3.6
Weight, Shipping (Approx.) lb 14
Weight, Shipping (Approx.) kg 6.4
