332 Approximately 67" - 112" (1.7 m - 2.84 m)

SKU
332-0
Overview

Ships in 4 Weeks

Elevate instruments and 3D devices to new heights!

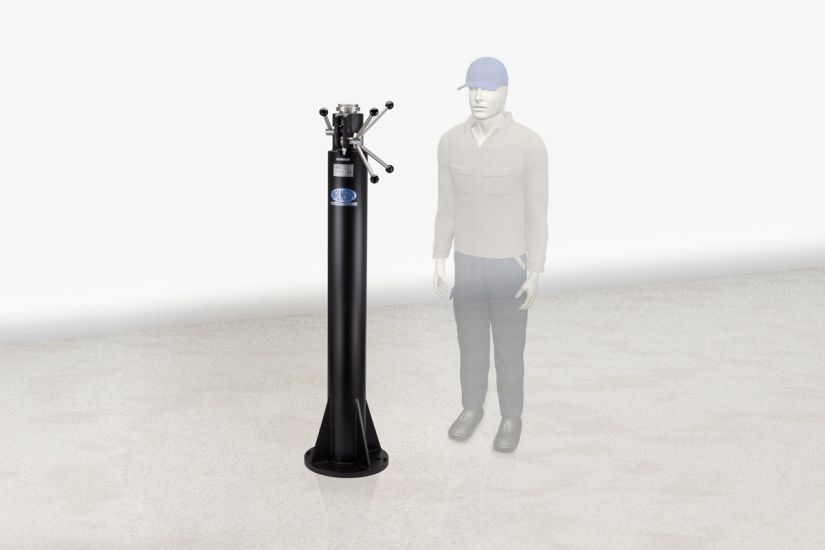

Our 332 pedestal stands are ideal to stage metrology instruments and 3D devices at higher elevations. The small footprint saves precious space on laboratory or manufacturing floors while providing rock-solid stability. The variable height instrument column provides a working range of 67 in - 112 in (1.7 m - 2.84 m), not including any adapters which may be mounted on top of the intermediate tube. The stand height measures from the floor to the top of the intermediate tube. Custom heights are easily manufactured.

A variety of accessories and instrument adapters fit into the intermediate tube while extension tubes provide even higher observation points. The stand has an air cushion damper to prevent the column from “free falling” and damaging the instrument in the event that the collar lock, ratchet pawl, and lift handle are released at the same time.

The baseplate is a 1.0 in (2.5 cm) thick steel plate with a diameter of 15 in (38.1 cm). Four 1.06 in (2.7 cm) mounting holes are equally spaced on an 11 in (28 cm) diameter bolt circle for easy baseplate mounting. It is also outfitted with four 5/8"-11 UNC-2B threaded leveling screws on a 14 in (35.6 cm) diameter bolt circle for easy adjustment to set the stand vertical.

The 332 pedestal stand is often used for space-saving permanent installations where stable, elevated fields-of-view are required.

Standard options for 332 Pedestal Stand

Model & Height Description Has this on top
332-0
68 in - 113 in
(173 cm - 287 cm)
Model 332STK with 235-3 hollow adapter having 3½"-8 thread (pictured at right). The 235-3 adds 0.975 in (24.8 mm) to the stand height. Weight: Stand with adapter, 431 lbs (195.4 kg). 235-3

May Be Used With

Accepts any product having an internal 3½"-8 thread
See also our entire line of stand accessories and instrument adapters

Specifications
Finish Black
Min Height in 68
Min Height mm 1,727
Max Height in 113
Max Height (mm) 2,870
Max Load (lb) 150
Max Load (kg) 68.2
Weight, Product (Approx.) lb 428
Weight, Product (Approx.) kg 194
Weight, Shipping (Approx.) lb 728
Weight, Shipping (Approx.) kg 330
