234CF Series Carbon Fiber Stand Extensions

SKU
234CF Series Carbon Fiber Stand Extensions

Height Without Weight

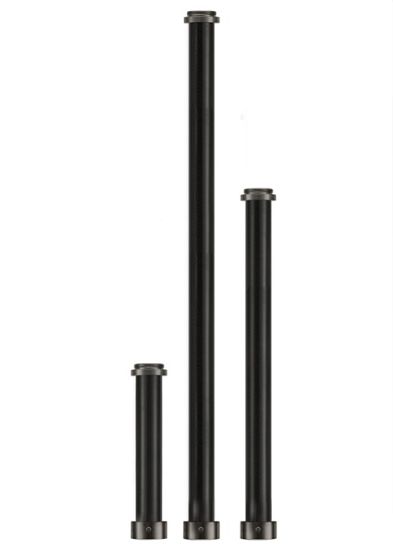

The 234CF Series of stand extensions increase the effective stand height without adding much extra weight. Available in several standard sizes (see table below). These extensions are made of carbon fiber tubing with a standard 3½"-8 thread on each end (one internal thread on the bottom to fit the stand, and one external thread on the top to fit an instrument or adapter). The 234CF extensions are intended for indoor GPS transmitters, laser projectors, cameras, etc. For a heavy-duty alternative, see our 234 Series stand extensions.



Note: Extension tubes are provided to increase the versatility of measurement systems. Excessive stand height build-up using extension tubes is not recommended due to the possibility of decreased stability and accuracy.

Model Effective Height Approximate Weight
234CF-20IN 20" (50.8 cm) 5.7 lbs (2.6 kg)
234CF-40IN 40" (101.6 cm) 6.5 lbs (2.9 kg)
234CF-60IN 60" (152.4 cm) 7.3 lbs (3.3 kg)
Custom lengths are available up to 62" (157.5 cm)

May Be Used With

Fits on any product having an external 3½"-8 thread
Any product having an internal 3½"-8 thread
