For tripod or other temporary base mounting

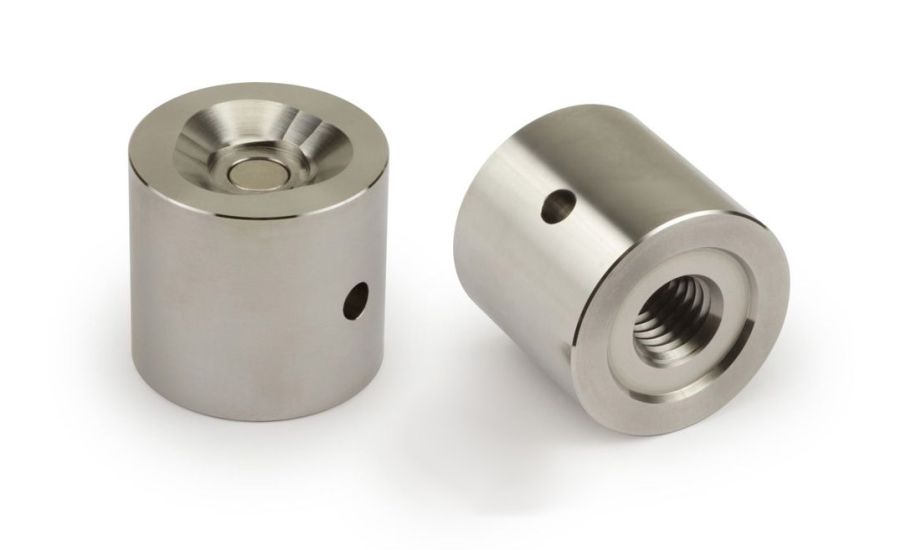

The 1.5THT adapter holds a 1.5" diameter SMR and may be mounted on a customer-supplied base unit using one of two different stud sizes, depending upon the model ordered. The bottom side of the 1.5THT contains an internal thread for securing this item to a base unit. A 1/4" hole on the side is provided to assist in removal of the adapter if needed. The SMR seats on a 3-point conical land and is held in place by a nickel-plated Neodymium magnet.
| Model | Mounting Hole |
| 1.5THT-.25-20 | 1/4" - 20 |
| 1.5THT-.625-11 | 5/8" - 11 |
May Be Used With
Any 1.5" diameter SMR
| Diameter in | 1.6" |
|---|---|
| Diameter mm | 40.6 mm |
| Effective Target Height in | 2.07" |
| Effective Target Height mm | 52.6 mm |
| Height in | 1.5 |
| Height mm | 38.1 |
| Material | Stainless Steel |
