1.5THLE Series Large Edge Adapter


Ships in 1 Week

A More Balanced Approach to Edge Detection

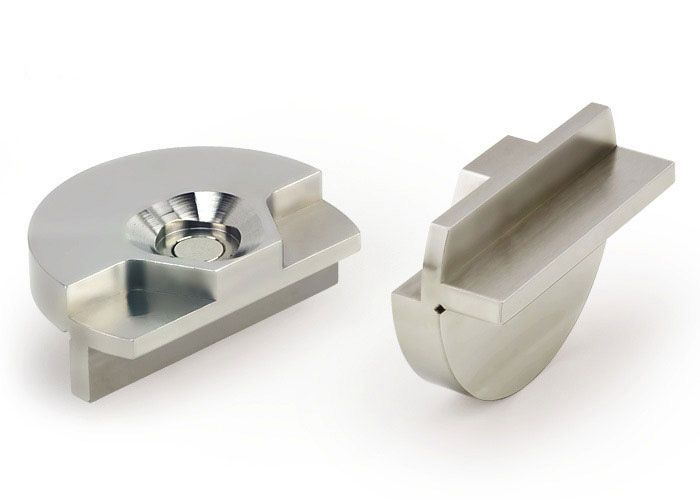

The 1.5THLE magnetic adapter locates a 1.5" diameter SMR directly over an outside corner of two intersecting surfaces within ±0.0005".  It also holds the centerpoint of the SMR precisely 1.000" or 25 mm (depending upon model selected) above the surface of the part being measured.  The SMR seats on a 3-point conical land.  This adapter is designed for proper balance to allow hands free use.

Choose the desired model number from the table below, which shows both the English and metric versions of this adapter.

Model Offset "A" Tolerance
1.5THLE-1 1.000" ±0.0005"
1.5THLE-25MM 25 mm ±0.013 mm

May Be Used With

Any 1.5" diameter SMR

Diameter in 2.5"
Diameter mm 63.5 mm
Hardness HRC 42-45
Material Stainless Steel, Machine Finish
Offset Tolerance ±0.0005" (±0.013 mm)
Target Centering Tolerance ±0.0005" (±0.013 mm)
