1.5THCP Center Punch Adapter

SKU
1.5THCP
Overview

Ships in 1 Week

Put a punch mark directly below your SMR location

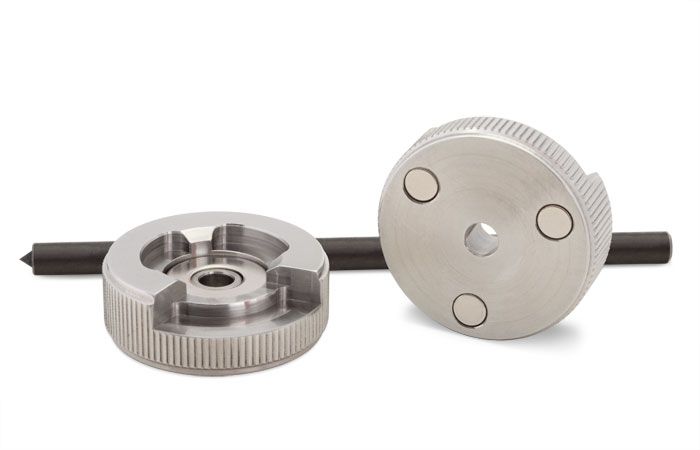

The 1.5THCP magnetic adapter is an SMR nest which doubles as a transfer punch locator, allowing you to mark a point directly under the SMR. The magnet in the 1.5THCP is positioned to create a somewhat stronger bond on the bottom than on the top. This offset-magnet approach helps to hold the adapter in place while the SMR is removed and the transfer punch is inserted through the precision center hole. The center hole is true to the center of the SMR within ±0.001" (±0.026mm). An optical alley is provided to allow negative viewing angles, and step edges allow for a better grip. The transfer punch is included.

Choose the desired model number (English or metric version) from the table below.

Model
Offset "A"
Tolerance
1.5THCP-1.15
1.15" ±0.001" 1.5THCP-29MM 29mm ±0.026mm


May Be Used With

Any 1.5" diameter SMR
Transfer Punch 15344 (included)


Specifications
Diameter in 1.6"
Diameter mm 40.6 mm
Hardness HRC 42-45
Material Stainless Steel, Machine Finish
Target Centering Tolerance ±0.001"(±0.026 mm)
