1.5TH-M Various Shank Sizes

SKU
1.5TH-M
Overview

Ships in 1 Week

For a more secure hold

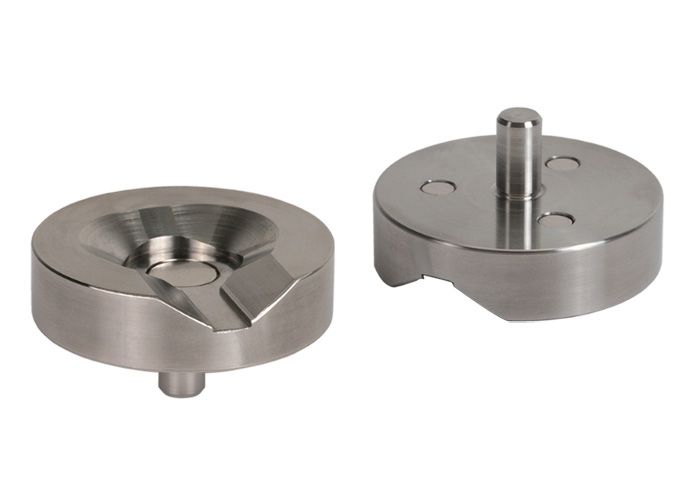

The 1.5TH-M Series magnetic adapters provide all of the features of our 1.5TH Series, with the addition of three magnets on the bottom surface of the adapter. These magnets provide a holding force if the adapter is placed in a hole in a ferrous material. The SMR seats on a 3-point conical land and is held in place by a magnet. An optical alley allows the SMR to be rotated down for a lower shooting angle. Various diameters and offsets are available - see tables below to construct the part number for the item you want.
Part Number Construction: 1.5TH-M-A-B.
Choose an "A" value, and pair with desired "B" value to create the item number for the product you want.
Offset Value "A"
1.000" 1
25 mm 25MM



Shank Diameter Value "B" Shank Diameter Value "B"
0.100" .1 4 mm 4MM
1/8" .125 5 mm 5MM
3/16" .1875 6 mm 6MM
1/4" .25 7 mm 7MM
5/16" .3125 8 mm 8MM
3/8" .375 9 mm 9MM
7/16" .4375 10 mm 10MM
1/2" .5 11 mm 11MM
9/16" .5625 12 mm 12MM
5/8" .625 13 mm 13MM
3/4" .75 14 mm 14MM
7/8" .875 15 mm 15MM
1" 1

May Be Used With

Any 1.5" diameter SMR

Specifications
Shank Diameter -0.0001" to -0.0005" (-0.003 mm to -0.013 mm)
Diameter in 1.6"
Diameter mm 40.6 mm
Hardness HRC 42-45
Material Stainless Steel
Offset Tolerance ±0.0005" (±0.013 mm)
Target Centering Tolerance ±0.0005" (±0.013 mm)
