1.5THDN-B Bolt-On Drift Nest

SKU
1.5THDN-B
Overview

Ships in 1 Week

Another mounting option for a temporary nest

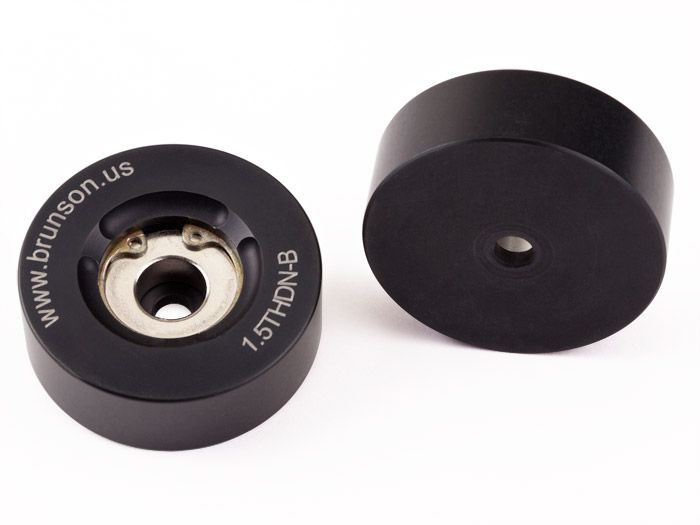

The 1.5THDN-B bolt-on drift nest provides a very secure option for mounting a reference point anywhere in the measurement volume. Use a #10 (or M5) cap screw to secure this target in any desired location, creating a fixed yet removable mount. This adapter contains a front-mounted magnet to hold the SMR in place.  Attach these adapters to machine tools, concrete floors and pillars, posts, stands, or just about anything else when a secure installation is required. When you"re finished, simply remove the adapter for use on the next project. Works with a 1.5" diameter SMR. You may wish to look at similar products like the 1.5THDN and 1.5THEDN.

May Be Used With

Any 1.5" diameter SMR

Specifications
Approx. Distance to Center of SMR in 1.125"
Approx. Distance to Center of SMR mm 28.6 mm
Diameter in 1.600"
Diameter mm 40.6 mm
Finish Black Anodize
Height in 0.5
Height mm 12.7
