0.875TH Various Shank Sizes

SKU
0.875TH
Overview

Ships in 1 Week

For use with 0.875" diameter SMR

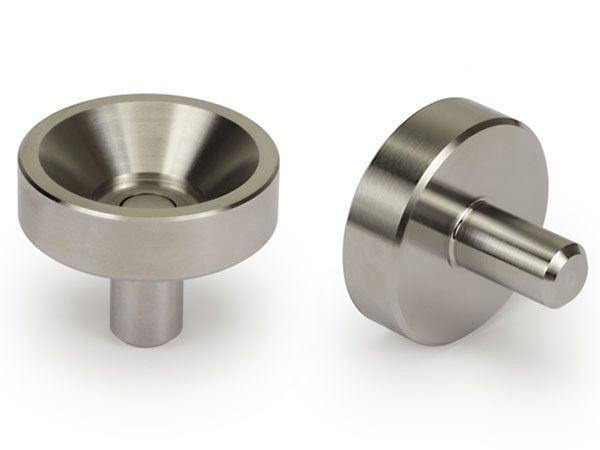

The 0.875TH series of magnetic adapters provides an SMR nest which mounts in holes having diameters from 1/8" to 5/8" or from 4 mm to 15 mm. Shank diameters are held to very close tolerances for precision slip fits. The adapter holds the center point of a 0.875" diameter SMR on centerline of the shank to a tolerance of ±0.0005" (±0.013 mm). The adapter also holds the center of the SMR to a known offset height at a tolerance of ±0.0005" (±0.013 mm). Refer to the table below for the available offset and shank diameter combinations. Choose any "A" value from the table below, and pair with any "B" value (table below) to create the item number for the product that you want. For example, 0.875TH-.5-12MM.

Offset Value "A"
0.500" (see note) .5
1.000" 1
20 mm 20MM

Shank Diameter Value "B" Shank Diameter Value "B"
1/8" .125 4 mm 4MM
3/16" .1875 5 mm 5MM
1/4" .25 6 mm 6MM
5/16" .3125 7 mm 7MM
3/8" .375 8 mm 8MM
7/16" .4375 9 mm 9MM
1/2" .5 10 mm 10MM
9/16" .5625 11 mm 11MM
5/8" .625 12 mm 12MM
13 mm 13MM
14 mm 14MM
15 mm 15MM

Note: For adapters having an offset of 0.500", the following "B" choices are not available: .125, .1875, 4MM, 5MM, and 6MM.

May Be Used With

Any 0.875" diameter SMR

Specifications
Shank Diameter -0.0001" to -0.0005" (-0.003 mm to -0.013 mm)
Diameter in 0.875"
Diameter mm 22.23 mm
Hardness HRC 42-45
Material Stainless Steel
